Texas Instruments TCAL6416 I²C-bus/SMBus I/O Expander

Texas Instruments TCAL6416 I2C-bus/SMBus I/O Expander allows a general-purpose parallel input/output (I/O) expansion solution for the two-line bidirectional I2C bus (or SMBus) protocol. The TCAL6416 features a 1.08V to 3.6V power supply voltage on the I2C bus side (VCCI) and a power supply voltage ranging from 1.08V to 3.6V on the P-port side (VCCP).

The TI TCAL6416 I2C-bus/SMBus I/O expander provides a 100kHz (Standard-mode), 400kHz (Fast-mode), and 1MHz (fast-mode-plus) I2C clock frequencies. The device offers a simple solution when additional I/Os are needed for switches, sensors, push buttons, LEDs, fans, and more.

The TCAL6416 has Agile I/O ports, which include additional features designed to enhance the I/O performance in terms of speed, power consumption, and EMI. Other features on the device are programmable output drive strength, programmable pull-up and pulldown resistors, latchable inputs, maskable interrupt, interrupt status register, and programmable open drain or push-pull outputs.

Features

  • Operating power-supply voltage range of 1.08V to 3.6V
  • Allows bidirectional voltage-level translation and GPIO expansion between 1.2V, 1.8V, 2.5V, and 3.3V I2C bus and p-ports
  • Low standby current consumption of 1µA typical at 1.8V
  • 1MHz fast mode plus I2C bus
  • Hardware address pin allows two devices on the same I2C, SMBus bus
  • Active-low reset input (RESET)
  • Open-drain active-low interrupt output (INT)
  • Input or output configuration register
  • Polarity inversion register
  • Configurable I/O drive strength register
  • Pull-up and pull-down resistor configuration register
  • Internal power-on reset
  • Noise filter on SCL or SDA inputs
  • Latched outputs with high-current drive maximum capability for directly driving LEDs
  • Latch-up performance exceeds 100mA per JESD 78, class II
  • ESD protection exceeds JESD 22
    • 4000V Human-body model (A114-A)
    • 1000V Charged-device model (C101)

Applications

  • Servers
  • Routers (telecom switching equipment)
  • Personal computers
  • Personal electronics
  • Industrial automation
  • Gaming consoles
  • Products with GPIO-limited processors

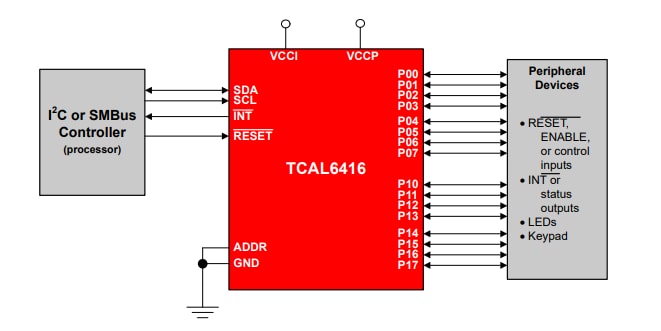

Simplified Schematic

Schematic - Texas Instruments TCAL6416 I²C-bus/SMBus I/O Expander

Typical Application Schematic

Application Circuit Diagram - Texas Instruments TCAL6416 I²C-bus/SMBus I/O Expander
Published: 2022-12-21 | Updated: 2022-12-27
