STMicroelectronics STEVAL-MKBOXPRO Programmable Wireless Box Kit

STMicroelectronics STEVAL-MKBOXPRO Programmable Wireless Box Kit is designed for developing any IoT application based on remote data gathering and evaluation. The PRO implements motion and environmental data sensing, along with a digital microphone, and enhances the connectivity and smartness of the users' environment.

The STMicro PRO can be explored regardless of the level of expertise with three different modalities.

The Entry mode allows users to run a wide range of already embedded IoT applications. The free STBLESensor App can be downloaded to a smartphone and used immediately to begin commanding the board with any of the following applications that have been specifically designed to work with the board sensors:

1) Motion: Compass, Free-fall detection, Level, Pedometer, Sensor-fusion - Quaternion
2) Environmental: Barometer
3) Log: Data recorder
4) AI and MLC: Baby crying detector, Human activity recognition
5) User interface: Qtouch
6) Connectivity: NFC Tag

The Expert mode can build custom applications through the STBLESensor App by selecting specific input data and operating parameters from corresponding available in-box sensors, functions to assess/compute those data, and output types required while leveraging on the available powerful algorithms.

The Pro mode permits the rapid development of users' tailored IoT applications taking advantage of STM32 open development environment (ODE) and ST function pack libraries, including sensing AI function packs with neural network libraries, without performing any coding activity.

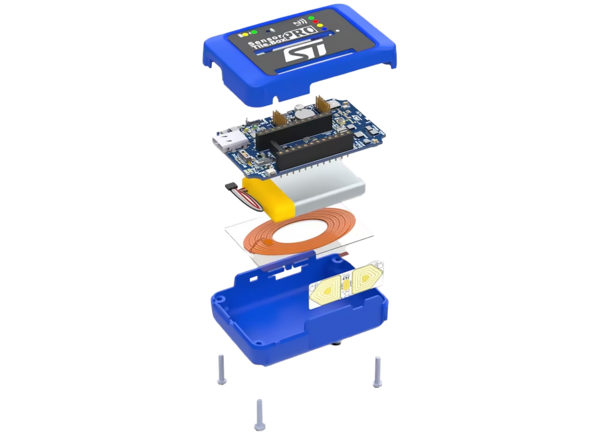

The PRO board fits into a small plastic box with a long-life 480mAh rechargeable battery, for the first time also leveraging on a wireless charger and a programmable NFC tag. The board can be easily connected through BLUETOOTH® to the ST BLE Sensor app on a smartphone, from which the box kit can be appreciated in Entry and Expert modes. In Pro mode, professional users can control the firmware programming and debugging interface in the STM32 ODE to develop firmware from scratch.


  • Ultra-low-power with FPU Arm-Cortex-M33 with TrustZone® microcontroller (STM32U585AI)
  • microSD™ card slot for standalone data logging applications
  • On-board BLUETOOTH Low Energy 5.2 (BlueNRG-LP) and NFC tag (ST25DV04K)
  • High-precision sensors to gather high-quality data:
    • Low-voltage local digital temperature sensor (STTS22H)
    • Six-axis inertial measurement unit (LSM6DSV16X)
    • Three-axis low-power accelerometer (LIS2DU12)
    • 3-axis magnetometer (LIS2MDL)
    • Pressure sensor (LPS22DF)
    • Digital microphone/audio sensor (MP23DB01HP)
  • User interface:
    • Hardware power switch
    • Green and orange system LED to display the power supply state
    • 4x programmable status LEDs (green, red, orange, blue)
    • 2x programmable push-buttons
    • Audio buzzer
    • Reset button
    • Qvar with electrodes for user interface experience
    • Interface J-Link/SWD debug-probe
    • Interface for extension board
    • Socket for DIL24 sensor adapters
  • An all-in-one sensor node, which fits into the palm of your hand (40mm x 63mm) for any IoT applications
  • Ready-to-go development kit
  • Power and charging options of USB Type-C® charging and connecting, 5W wireless charging, and rechargeable long-life 480mAh battery
  • Develop apps quickly regardless of expertise level:
    • Entry mode: wide range of default IoT and wearable applications
    • Expert mode: create your own app in a simple graphic environment
    • Pro mode: develop code in an intuitive way using STM32 Open Development Environment (ODE) and ST function pack libraries
  • STBLESensor app on the smartphone (both on the Google Play and Apple Store) allows users to immediately connect to the box kit
  • Windows, LINUX, and MacOS ST software compatibility
  • Firmware over-the-air (FOTA) upgrade
  • CE, FCC, UKCA, IC Certifications

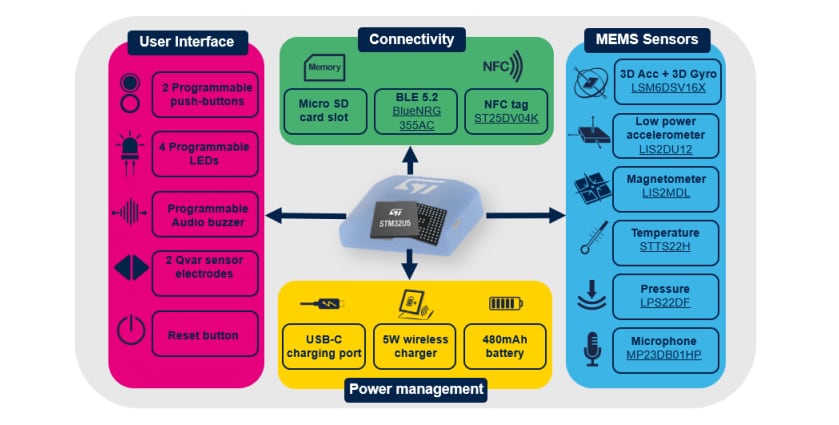

Solution Block Diagram
