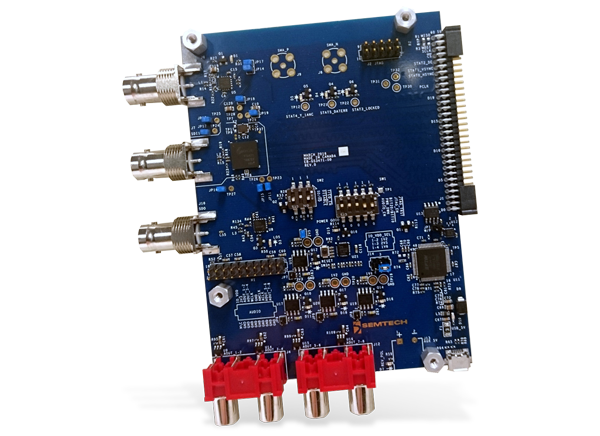

Semtech GS3471 Evaluation Kit
Semtech GS3471 Evaluation kit is used to evaluate GS3471 Serial Digital Interface (SDI) receiver. The evaluation board includes power supplies, USB control interface, and two 3G-SDI inputs. Semtech GS3471 kit also includes a 3G-SDI loop-through output, a parallel video output connector, a 27MHz crystal, DIP switches, and a few status indication LEDs.
Kit Contents
- Power supplies
- USB control interface
- Two 3G-SDI inputs
- 3G-SDI loop-through output
- Parallel video output connector
- 27MHz crystal
- DIP switches
- Status indication LEDs
Associated Receivers
Semtech GS347x SDI Receivers
Multi-rate SDI features SMPTE processing and dual input buffer with a 2x2 MUX.
