iWave Global Arria 10 SoC FPGA Development Platform

iWave Global Arria 10 SoC FPGA Development Platform comprises the Arria 10 SoC/FPGA SOM and a high-performance carrier card. The Arria 10 SoC/FPGA Development Kit allows users to develop rapid prototypes, validating the high-speed interfaces and I/Os. The SOM is equipped with 4GB DDR4 RAM (64-bit) from FPGA and 2GB DDR4 SDRAM (32-bit) with ECC from HPS (expandable).

The iWave Global Arria 10 SoC/FPGA Development Kit carrier board supports a wide range of high-speed interfaces, such as FMC (HPC) Connectors, SATA, SFP+, and PCIe connectors. These allow the validation of Arria 10 FPGA high-speed transceivers and other onboard connectors to verify Arria 10 SoC (HPS) interfaces.

Features

  • Arria 10 SoC and FPGA device compatibility
    • SX270, SX320, SX480, SX570, SX660
    • GX270, GX320, GX480, GX570, GX660
  • 32-bit DDR4 support with ECC for HPS
  • 64-bit DDR4 support for FPGA
  • 4-bit Micro SD for HPS booting
  • QSPI configuration Flash
  • 20 high-speed transceivers x 17.4Gbps
  • FMC HPC connector x 2
  • Dual 12-bit PMOD connectors
  • SFP+ connector
  • SDI video in and out HD connector
  • SATA connector
  • Display Port connector
  • PCIe x 4 connector

Specifications

  • Arria 10 SoC FPGA SOM:
    • Compatible Arria 10 SoC family - SX270, SX320, SX480, SX570, SX660
    • Compatible Arria 10 FPGA family - GX270, GX320, GX480, GX570, GX660
    • 1GB DDR4 SDRAM (32-bit) with ECC for HPS/FPGA (expandable)
    • 4GB DDR4 RAM (64-bit) from FPGA
    • MicroSD connector for HPS booting
    • eMMC Flash for HPS booting (optional)
    • Configuration Flash for FPGA
  • Carrier Board:
    • High-speed interfaces:
      • FMC connector x2
      • PCIe x 1 lane connector x1
      • SATA x 1 lane connector x1
      • SFP+ connector X1
      • SDI video IN BNC jack
      • SDI video OUT BNC jack
  • Communication features:
    • HPS Gigabit Ethernet through RJ45 Magjack
    • OTG USB 2.0 through Micro AB connector x1
  • Audio and video:
    • Display Port X1
  • FPGA standard I/O interfaces:
    • 12pin PMOD connector x2
  • HPS standard I/O interfaces:
    • HPS IO header
  • Debug interfaces:
    • UART to USB converter with USB MicroAB connector
    • JTAG connector
  • 12V power input jack power supply
  • 140mm X 130mm form factor
  • REACH & RoHS compliant

Applications

  • Test and measurement equipment
  • Control and intelligence equipment
  • Diagnostic medical imaging equipment
  • Wireless infrastructure equipment
  • Compute and storage equipment
  • Broadcast and distribution equipment

Associated Products

Altera Arria® Family FPGAs

Designed for cost- and power-sensitive transceiver-based and embedded applications.

Learn Moreabout Altera Arria® Family FPGAs View Productsrelated to Altera Arria® Family FPGAs

iWave Global Intel Arria 10 SoC System on Modules

Based on the Arria 10 SX family with an F34 package and supplied with 32-bit DDR4 memory support.

Learn Moreabout iWave Global Intel Arria 10 SoC System on Modules View Productsrelated to iWave Global Intel Arria 10 SoC System on Modules

Block Diagram

Block Diagram - iWave Global Arria 10 SoC FPGA Development Platform

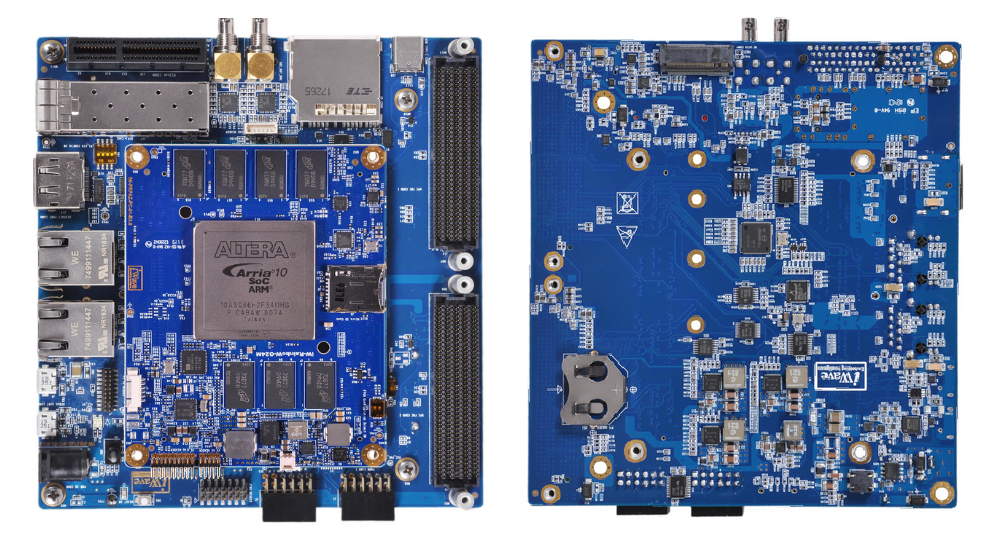

Front & Back View

iWave Global Arria 10 SoC FPGA Development Platform
