Infineon Technologies OptiMOS™ 7 Automotive Power MOSFETs
Infineon Technologies is introducing its leading OptiMOS™ 7 Automotive Power MOSFETs technology with remarkably low on-state resistance, reduced switching losses, and enhanced ruggedness. OptiMOS 7 redefines the landscape of automotive power MOSFETs. The OptiMOS 7 MOSFET technology from Infineon establishes a new standard for automotive applications, allowing performance and efficiency while addressing the challenges of tomorrow's automotive systems.
This product line is equipped with reduced switching losses, improved SOA ruggedness, and high avalanche current capability, facilitating efficient system design by:
• Delivering high power density and energy efficiency, optimizing system performance
• Increasing current capability to handle higher power demands
• Improving design ruggedness to withstand challenging operating conditions, ensuring long-term reliability
• Superior switching performance for enhanced system efficiency and responsiveness
• Small footprint and efficient cooling to enable efficient space utilization and cooling solutions
• Automotive quality product design ensures high reliability and performance
• High automotive quality production adhering to stringent automotive standards
Features
- Ultra-low RDS(on)
- High avalanche capability
- High SOA ruggedness
- Fast switching times (turn on/off)
- Leadless packages with Cu-clip
- Leading thin wafer Cu-technology
- Leading 300mm in-house production

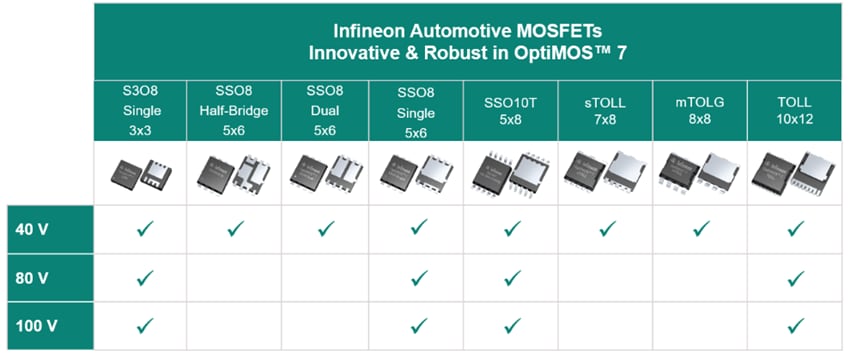

- Available packages
- PG-TDSON-8 (single 5x6) in 40V, 80V, and 100V (IAUCN0xS7xxxx)
- PG-TDSON-8 (dual 5x6) in 40V (IAUCN0xS7xxxxG)
- PG-HSOF-5 (7x8) in 40V (IAUAN0xS7xxxx)
- PG-HSOG-4 (8x8) in 40V (IAUMN0xS7xxxx)
- PG-HSOG-4-1 (8x6.2) in 40V (IAUMN04S7N0xxG)
Applications
- 40V MOSFETs for 12V power supply
- Electric power steering
- Battery disconnect switches
- Zone control units and E-fuse boxes
- DC/DC
- USB charging
- Braking
- Various BLDC drives
- 80V and 100V MOSFETs for 48V power supply
- HV to LV DC/DC converter
- 48V pumps and fans
- 48V battery management
- LED lighting
- 48V power distribution
- 48V electric power steering
HV-LV DC/DC
HV-LV DC/DC converter is an essential component in electric vehicles, where several electronic circuits operate at different voltage levels. The DC-DC converter converts a DC voltage from the battery into low-voltage DC power, depending on the circuit requirements.
Pumps and Fans
Electric pumps and fans play a critical role in thermal management systems, making them ideal applications for the latest OptiMOS™ 7 MOSFETs. Together with Infineon's portfolio of MOTIX™ 32-bit motor control SoC products like the TLE9891QTA61, TLE9893-2QTW62S,
TLE9879QXW40 and sensors, the OptiMOS™ 7 is the right choice and state-of-the-art market-integrated solution for mechatronic BLDC motor drive solutions.
