Cree LED XLamp® XQ-E LEDs

Cree LED XLamp® XQ-E LEDs significantly reduce the size and total cost of LED luminaires without sacrificing lumen output, efficacy, or reliability. The XQ-E's combination of optical symmetry, consistent design across all configurations, and tiny 1.6mm x 1.6mm footprint simplifies manufacturing and design while providing excellent color mixing. Cree XQ-E LEDs deliver maximum candelas through secondary optics, radically reducing the system size and power of high-intensity color applications. The series offers a drop-in ready upgrade for XQ-E high-density designs, improving candela performance with minimal redesign.

Features

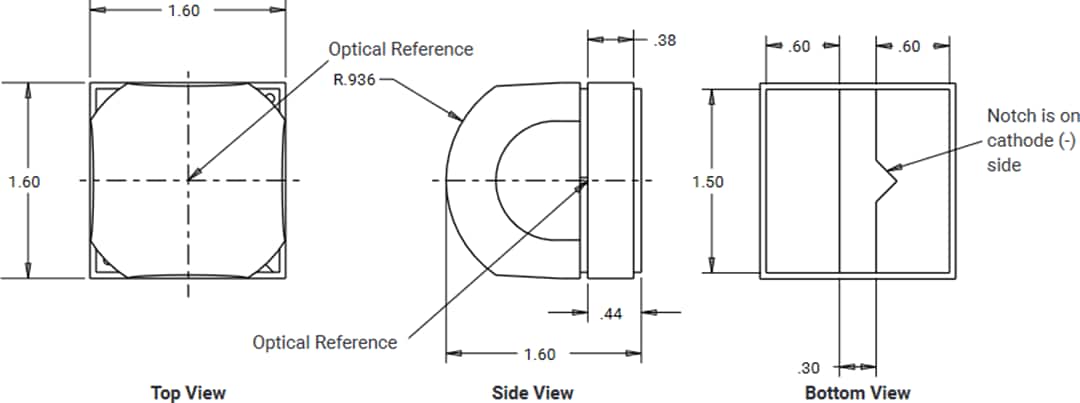

Cree's smallest lighting class LED: 1.6mm x 1.6mm
1A maximum drive current (high density and high intensity)
Reflow solderable - JEDEC J-STD‑020C compatible

Unlimited floor life at ≤30°C/85% RH
RoHS and REACH compliant
UL-recognized component (E349212)

Applications

Non-directional
Directional
Downlights
Exterior areas
Consumer portables

High-end portables
Architectural
Entertainment
Vehicles

Specifications

Available colors
- White
  - 70-CRI white
  - 80-CRI white
  - 90-CRI white
- Royal blue
- Blue
- Green
- PC amber
- Red‑orange
- Red
- High efficiency (HE) photo red
