Analog Devices Inc. DC2839A Demo Circuit for the LTC6115

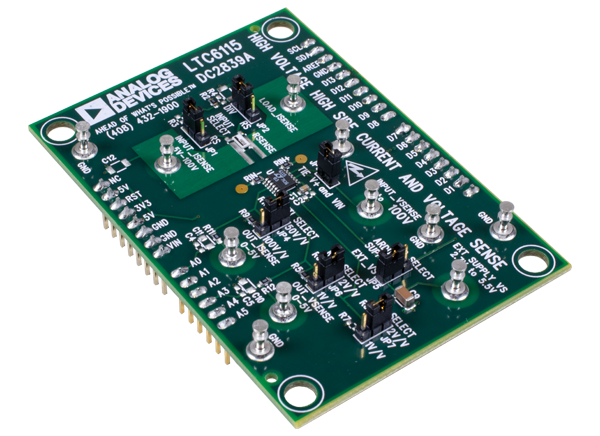

Analog Devices Inc. DC2839A Demo Circuit for the LTC6115 is designed to evaluate the LTC6115 high-voltage, high-side current sense circuit. This demo circuit is capable of measuring inputs up to 100V and 2A. The DC2839A demo circuit can be connected to Linduino^® as a shield and has an accompanying Linduino sketch. The voltage sense input supply can be either an external 2.7V to 5.5V power source or drawn from a Linduino (DC2026C) board when DC2839A is used as a Linduino shield. This demo circuit features a four-terminal 50mΩ sense resistor with a footprint for larger and higher-power-rated parts. A 1:1000 resistor divider can be selected with jumpers to provide simulated mV-scale input difference voltages if high currents are not available. The LTC6115 current sense circuit can be configured to measure the same input or separate inputs.

Features

Evaluates the LTC6115 high-voltage, high-side current sense circuit
Measures inputs up to 100V and 2A

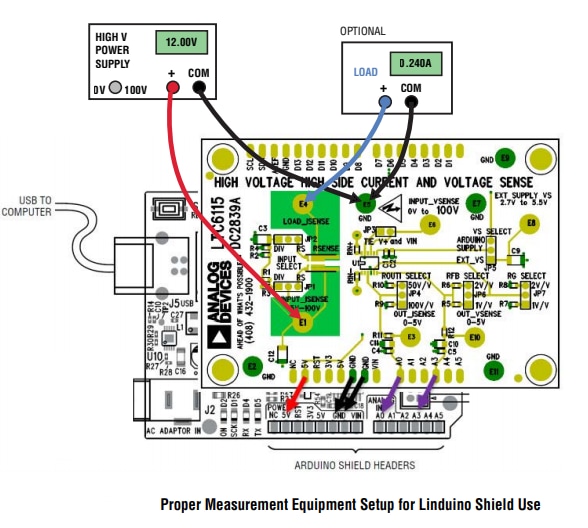

Can be connected to Linduino as a shield and has an accompanying Linduino sketch

Includes a four-terminal 50mΩ sense resistor with a footprint for larger and higher-power-rated parts

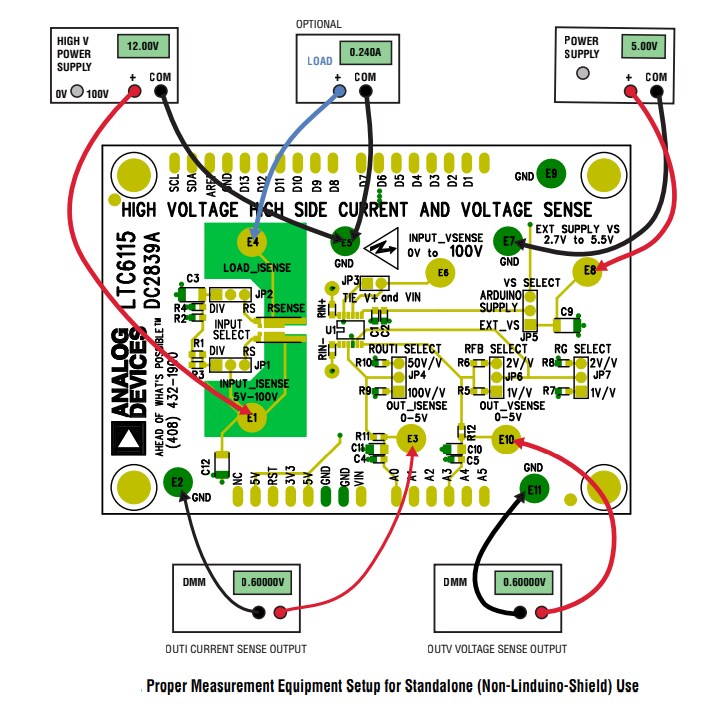

An external 5V to 100V power source is needed for input and current sense supply
