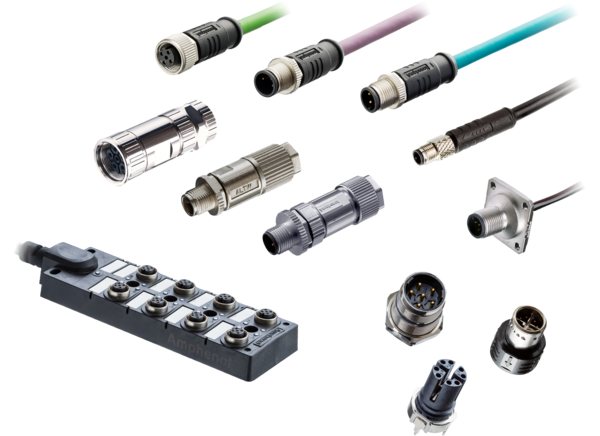

Amphenol LTW M Series Sensor Connectors
Amphenol LTW M Series Sensor Connectors feature waterproof ratings of IP65, IP67, and IP68 with current ratings of 1.5A to 28A. This connector series includes receptacles, connectors overmolded with cable, and field-installable connectors with >100 mating cycles. Amphenol LTW M Series Sensor Connectors meet IEC 61076-2-101 and IEC 61076-2-104 standards. They come in standard cable lengths ranging from 1m to 99m and are also available in M8 SMT and M12 SMT variants.
Applications
- Industrial automation
- Automotive diagnostics
- Test equipment
- LEDs
- Transportation
- UAV
- Rugged IT
- Lifts and material handling
Specifications
- Identifications
- M5
- M8
- M10.5
- M12 (A, B, D, I, K, L, S, T, X code)
- Heavy-duty shielded connector
- M23
- Description
- Receptacles
- Overmolded with cable
- Field installable
- 1.5A to 28A current rating / data
- 1m to 99m standard cable length
- >100 mating cycles
- IP65, IP67, and IP68 waterproof ratings
- ≤10mΩ contact resistance
- 10HZ to 500Hz and 0.35mm vibration
- Temperature range
- Receptacle: -40°C to +105°C
- Overmolded with cable
- -20°C to +80°C - PVC cable
- -20°C to +85°C - PU cable
- Field installable: -40°C to +105°C
- Material
- Copper alloy and gold plated contacts
- Nylon+GF or PU, UL recognized connector body (housing)
- Zinc alloy or copper alloy and nickel-plated metal screw nut
- Standards
- IEC 61076-2-101
- IEC 61076-2-104
