45586-0003

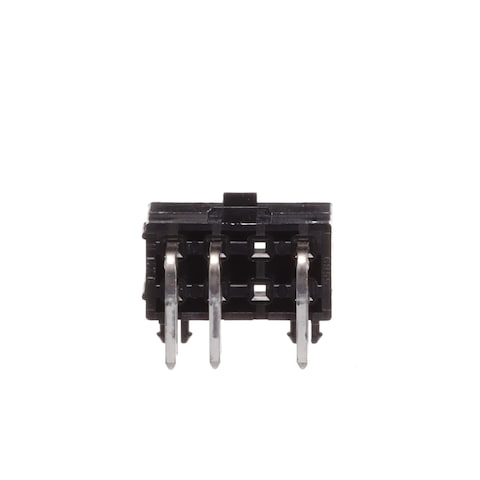

Name: Molex 45586-0003
Brand: Molex
SKU: 538-45586-0003
Price: 1.82 EUR
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

538-45586-0003

Mfr. No:

45586-0003

Mfr.:

Molex

Description:

Headers & Wire Housings MF Jr Hdr Assy 8Ckt 8Ckt Gen1 Gold Voids

Datasheet:

45586-0003 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Molex 45586-0003

Availability

Stock:: 0

You can still purchase this product for backorder.

An unexpected error occurred. Please try again later.
On Order:: 2,220

Expected 04/03/2026

2,720

Expected 28/05/2026
Factory Lead Time:: 17

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

€-.--

Ext. Price:

€-.--

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	€1.82	€1.82
	€1.59	€15.90
	€1.52	€38.00
	€1.49	€74.50
	€1.42	€142.00
	€1.28	€320.00
	€1.19	€595.00
	€1.03	€700.40
	€0.963	€2,619.36

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Power
Number of Positions:	8 Position
Pitch:	4.2 mm (0.165 in)
Number of Rows:	2 Row
Row Spacing:	4.2 mm (0.165 in)
Mounting Style:	Board Lock
Termination Style:	Solder Pin
Mounting Angle:	Right Angle
Contact Gender:	Pin (Male)
Contact Plating:	Gold
Termination Post Length:	3.6 mm (0.142 in)
Series:	45586
Tradename:	Mini-Fit Jr.
Brand:	Molex
Contact Material:	Brass
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MX
Housing Colour:	Black
Housing Material:	Nylon
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	680
Subcategory:	Headers & Wire Housings
Part # Aliases:	0455860003 455860003
Unit Weight:	4.885 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

45586-0003 Datasheet (PDF)

PCN

RoHS Certificate (PDF)

TARIC:: 8536693000
CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Mini-Fit Connector Family

Molex Mini-Fit Jr. and Mini-Fit Plus Power Connectors deliver up to 9A and 13A, respectively. Blind-mating and terminal-position assurance (TPA) options provide a versatile connector system for a wide range of applications. Typical applications for these Molex connectors include telecommunications / networking, industrial, home appliances, medical, and automotive.

Mini-Fit Jr. Connectors

Molex Mini-Fit Jr. Connectors are ideal for higher-current / higher-density applications that require design flexibility for wire-to-wire and wire-to-board configurations. Molex Mini-Fit Jr. connectors are made for power applications up to 9.0A per circuit. The connectors feature fully isolated terminals, positive housing locks, low-engagement forces, and polarized housings. They are UL recognized, CSA approved, and TUV licensed. All components are lead free and RoHS compliant. Molex Mini-Fit Jr. Connectors are available in a single row or dual row, 2 to 24 circuit options, and multiple plating and material selections.

Molex Mini-Fit® Connectors

Molex Mini-Fit® Family offers design flexibility for wire-to-wire, wire-to-board and board-to-board configurations in high current, high density applications. Features of the Molex Mini-Fit Family include fully isolated contacts, positive housing locks, low engagement forces, and polarized headers. The Mini-Fit connectors are available in single-row or dual-row with 2- to 24-circuits and multiple plating options. Designed with a rated voltage of 600V, the Molex Mini-Fit connectors are ideally suited for power applications in the security, computer, and medical industries.

Fit Family Connectors

Molex Fit Dual-Row Connectors provide power delivery and power distribution in wire-to-wire, wire-to-board, and board-to-board configurations. Molex Fit power connectors range from the 2.50mm pitch Nano-Fit to the 5.7mm pitch Mega-Fit connectors. These off-the-shelf connectors can be modified, customized, or adapted to meet virtually any application need.
